TEG Bath Cleaning System

Home > Shop > Thermal Cleaning Machine > TEG Bath Cleaning System > TEG Bath Cleaning System

TEG Bath Cleaning System

Vacuum Cleaning Furnace consist of vacuum sealed furnace, stainless steel electric heat pipe heater, waste collection container, water spraying syringe, water circle vacuum pump.

qianli@jsryan.com

8615371113672

TEG Bath Cleaning System

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

General Description

Tri Ethylene Glycol (TEG) is a colorless, transparent, neutral oil liquid. When being heated to the boiling temperature, there will be an effect of melting and alcoholysis to the polymers. As per this characteristic, put the parts to be cleaned into the TEG solution, heat the TEG solution to 275 °C (limit boiling point of 286 °C ), the polymers attached to the parts will be melted.

- Application

TEG bath cleaning system is mainly used in the chemical and fiber industry, which is designed for cleaning spinnerets, spin packs and filters of PET.

- Advantage

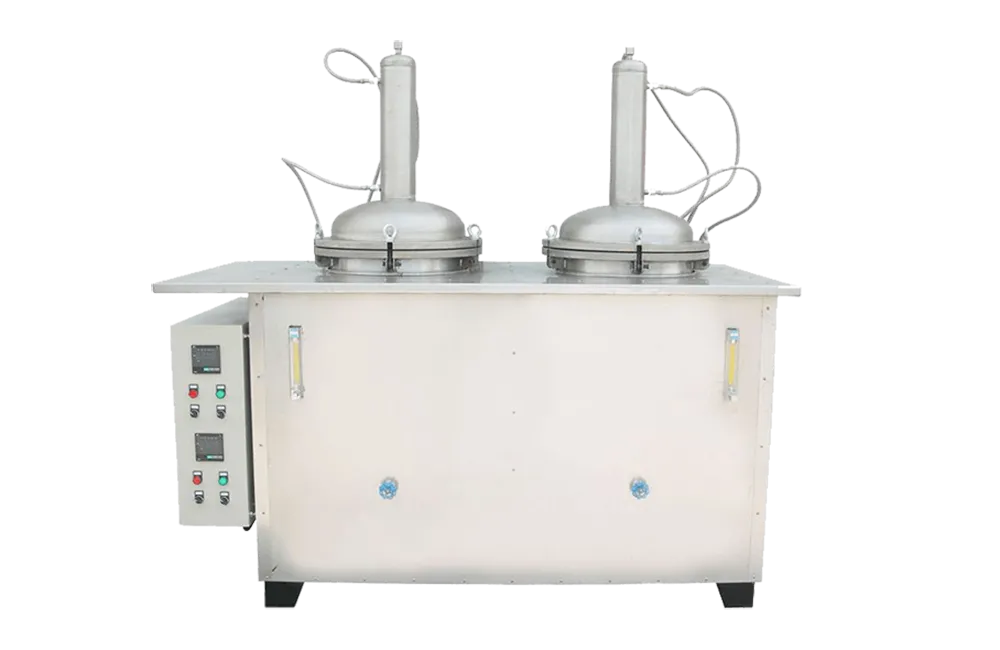

Single/Double/Triple pot configuration
Cleaning cycle is adjustable as per requirement
The cleaning is fully automatic
Low power consumption
Water cooling system
All Stainless Steel structure

- Advantage

Tri Ethylene Glycol (TEG) is a colorless, transparent, neutral oil liquid. When being heated to the boiling temperature, there will be a effect of melting and alcoholysis to the polymers. As of this characteristic, put the parts to be cleaned into the TEG solution, heat the TEG solution to 275 °C (limit boiling point of 286 °C ), the polymers attached to the parts will be melted.

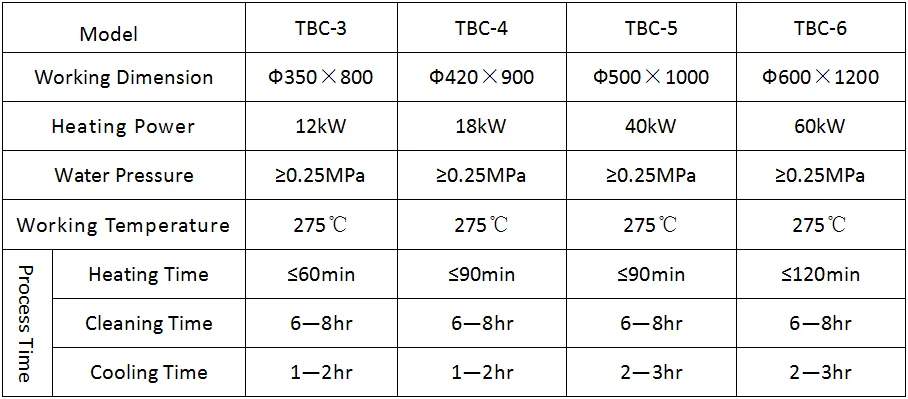

Parameters

Typical Applications

- Delivery & Packing

Delivery time: Machine will be shipped within 30 working days (or on request) after payment, our technician will test the machine well before shipment, so our customers can use directly when got the machine.

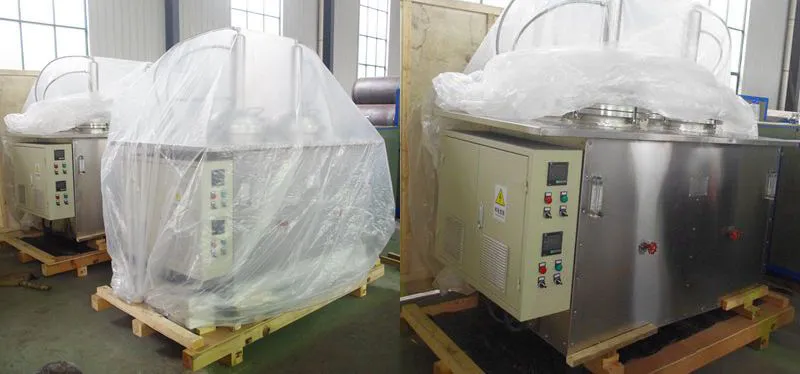

Packing: plywood case. Machine will be wrapped with plastic film and then put into plywood cases before cleaning.

Features

Cleaning Pot
made of stainless steel, with a cooling jacket wrapping the barrel for cooling the temperature of TEG solution after the cleaning by putting in the cooling water to the jacket and drain out in the other side.

Cover
elliptic, for gathering the vapor of TEG, intergrated with a condenser which actually is a tube type heat exchanger. The cooling water flow through the shell side and the vapor of TEG go through the tube side, after the cooling, changed into the TEG solution again, and then back to the cleaning pot from the upper flexible metal tubing.

Electric Heater
flanged type, installed at the bottom of the cleaning pot, directly contact with the TEG solution.

Basket
made of stainless steel, customized to the parts to be cleaned, perforated, multi-tire, and so on.

Control Panel
independent operation, auto logic programmed control of individual cleaning pots. PID temperature control, SSR drive for heater control.
