Vacuum Cleaning Furnace with PLC controller for Cleaning Mould Filter
Vacuum Cleaning Furnace with PLC controller for Cleaning Mould Filter
Vacuum Cleaning Furnace with PLC controller for Cleaning Mould Filter
Vacuum Cleaning Furnace consist of vacuum sealed furnace, stainless steel electric heat pipe heater, waste collection container, water spraying syringe, water circle vacuum pump.
Share This Product:
  • General Description
  • Parameters
  • Features
  • Typical Applications
Vacuum Cleaning Furnace consist of vacuum sealed furnace, stainless steel electric heat pipe heater, waste collection container, water spraying syringe, water circle vacuum pump. The integrated structure of the furnace cover and the work trolley is manually moved and pulled, so that the furnace cover moves on two horizontal tracks, opening or closing. The cleaned workpiece is placed in a hanging basket or a special basket, and is hoisted into the furnace with an electric hoist (user-supplied). The structure of the furnace is novel and reasonable, wide application and convenient operation.

Product Details

Working Principle

Vacuum cleaning furnace make use of the feature of polymer which can be melted at about 300°C and can be cracked and coked by isolated air above 300°C, producing a variety of lysates. Above 400 °C with little oxygen and much vacuum, can be fully oxidizable.
The workpieces are first heated to about 300°C, so that more polymer on the surface of the workpiece melts into the bottom waste collection tank, just leaving little polymer and ash in the micropore on the surface of the workpiece. At this time, the temperature of the furnace is raised to 400-500°C (or on request), and open the vacuum pump at the same time via little air, oxidizing the remaining polymer to generate carbon dioxide and water.
The ash and water vapor floating in the furnace are sprayed and washed by a water spray scrubber and then taken out of the furnace by the vacuum pump, and taken away by the water. No pollution gas, smoke and ash are discharged indoors during the whole work.

Model

Chamber Dimension
Dia. X L (mm)

Overall Dimension
L X W X H (mm)

Heating Power
kW

Vacuum Pump
kW

Vacuum Degree
MPa

Pumping Speed
m3/h

GYZ-L-1

Φ500X600

1700X1200X1850

9

2.2

-0.085

80

GYZ-L-2

Φ600X800

2400X1600X2300

15

3

-0.085

80

GYZ-L-3

Φ700X1000

2400X1900X2500

18

3

-0.085

80

GYZ-L-4

Φ800X1000

2750X2100X2500

30

4

-0.085

80

GYZ-L-5

Φ800X1200

2750X2100X2800

30

4

-0.085

80

GYZ-L-6

Φ1000X1200

2950X2200X2800

30

4

-0.085

80

GYZ-L-7

Φ1000X1400

2500X2950X3000

42

4

-0.085

80

GYZ-L-8

Φ1000X2000

3250X2150X3600

60

4

-0.085

80

  • High thermal efficiency and low consumption

    1
  • Easy opration and automatic

    2
  • The workpiece will be cleaned well with smooth wire hole

    3
  • Temperature raise fast and even inner temperature of furnace

    4
  • Convenient inspection and maintenance

    5
  • Environmental protection, energy saving, security and stability

    6
  • Filter mesh cleaning
  • Breaker plates cleaning in plastic industry
  • Spinneret plate cleaning
  • Screw and die head cleaning
  • Mesh cleaning in polymer industry
  • Mold cleaning in plastic industry
  • Spinning pack cleaning
  • Spinning nozzle cleaning
  • Extrusion tool cleaning
  • Laser filter cleaning
  • Cleaning polymer, PE, PP, polyester, nylon from filter net

Delivery & Package

  • Delivery time: Machine will be shipped within 30 working days (or on request) after payment, our technician will test the machine well before shipment, so our customers can use directly when got the machine.

  • Packing: plywood case. Machine will be wrapped with plastic film and then put into plywood cases before cleaning.

Feedback from contact with us
Related Product

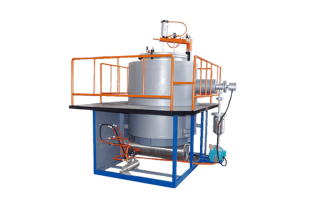

Vacuum Pyrolysis Furnace Cleaning of Die Head for Blown Films
Vacuum Pyrolysis Furnace Cleaning of Die Head for Blown Films
Vacuum Cleaning Furnace consist of vacuum sealed furnace, stainless steel electric heat pipe heater,...
Learn More>

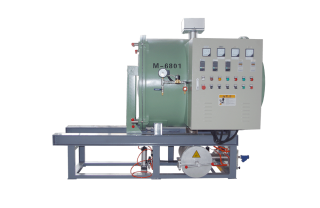

Vacuum Pyrolysis Furnace Cleaning of Laser Filter Disk in Recycling Industry
Vacuum Pyrolysis Furnace Cleaning of Laser Filter Disk in Recycling Industry
Vacuum Cleaning Furnace consist of vacuum sealed furnace, stainless steel electric heat pipe heater,...
Learn More>

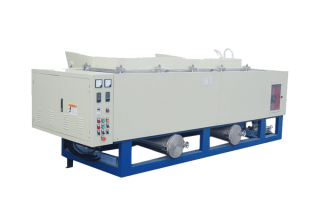

Horizontal Vacuum Pyrolysis Cleaning Furnace for Cleaning Spinneret Plate in Non woven Industry
